| Specification | Dimensions / Capacity |
| Size (Inches) | 6″ |
| Width of Jaws | 150 mm |
| Max. Opening (Standard Jaw) | 200 mm |
| Max. Opening (Reversed Jaw) | 430 mm |
| Depth of Jaws | 45 mm |
| Overall Length | 515 mm |
| Overall Height | 125 mm |
| Net Weight | 35 kg |
| Tenon Slot Size | 20 mm |

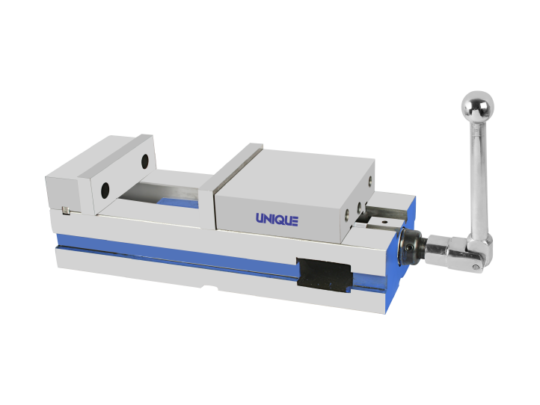

Angle Lock Self Centring Vice – Code No. U-350 SCV.
Key Features
- This vice can be clamped vertical or either side.
- High clamping force can be achieve by effortless handle movement which eliminates hammering on handle.
- Hardened jaws maintain accuracy for long time.
- Enhanced body Structure reduces the deflection in operation while the vice mounted vertical or horizontal.
- Ductile iron body.
- Sealed bearing system reduces clamping pressure and increases bearing life.
- Accuracy in parallelism & squareness with in 0.02/100mm.
- No work piece tilt after clamping.
- All parts are interchangeable .
- Tenon and tenon slots provided for effortless truing of vice.
- Supplied with Stopper for Fast Production.
