Specifications…..
| Specifications | 4″ | 8″ |
| Diameter of Chuck (mm) | 100 | 200 |
| Length (mm) | 250 | 300 |
| Width (mm) | 220 | 280 |
| Height (mm) | 190 | 170 |
| Swivel | 360° | 360° |
| Tilting | 90° | 90° |
| Slot Distance (mm) | 170 | 275 |
| Approx. Weight (kg) | 16 | 62 |

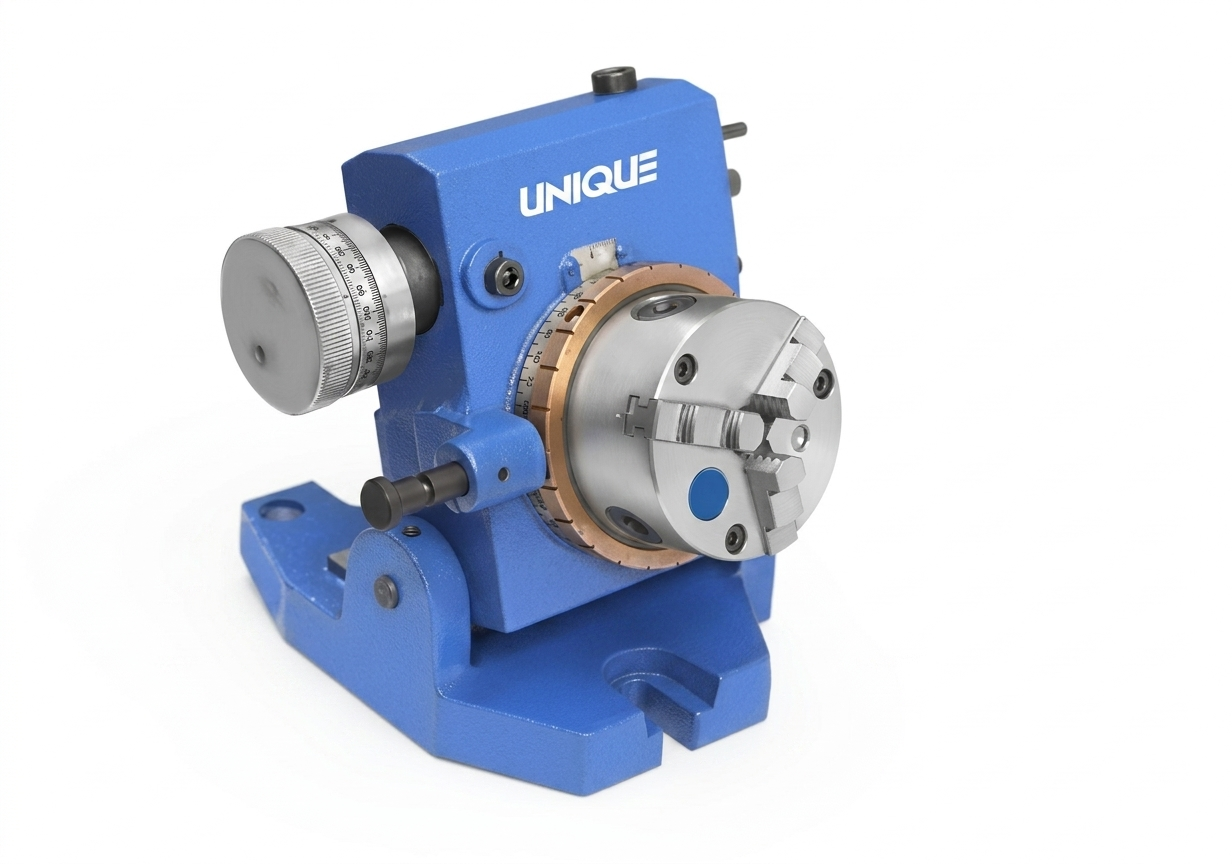

Unique Tilting Indexing Device Code No: U 1333
Key Features
-
Dual-Axis Flexibility: The working surface can be rotated between 0° and 90° on the A-axis, allowing for precise angular machining and complex positioning.
-
Combined Versatility: Offers the functionality of both a Dividing Head (U352) and a Rotary Table (U354), providing significant savings in both cost and workspace.
-
Performance-Matched: Offers identical features to the U1335 Indexing & Milling Fixture, ensuring high-accuracy results for milling and indexing tasks.
-
360° Swivel: Provides full rotational capability for uniform circular machining and index-based operations
