Specifications…..
| Specifications | 4″ | 6″ |
| Width of Jaws (mm) | 100 | 150 |
| Opening of Jaws (mm) | 100 | 150 |
| Depth of Jaws (mm) | 45 | 55 |
| Overall Height (mm) | 125 | 160 |
| Overall Width (mm) | 175 | 240 |
| Overall Length (mm) | 265 | 400 |
| Approx. Weight (kg) | 16 | 35 |

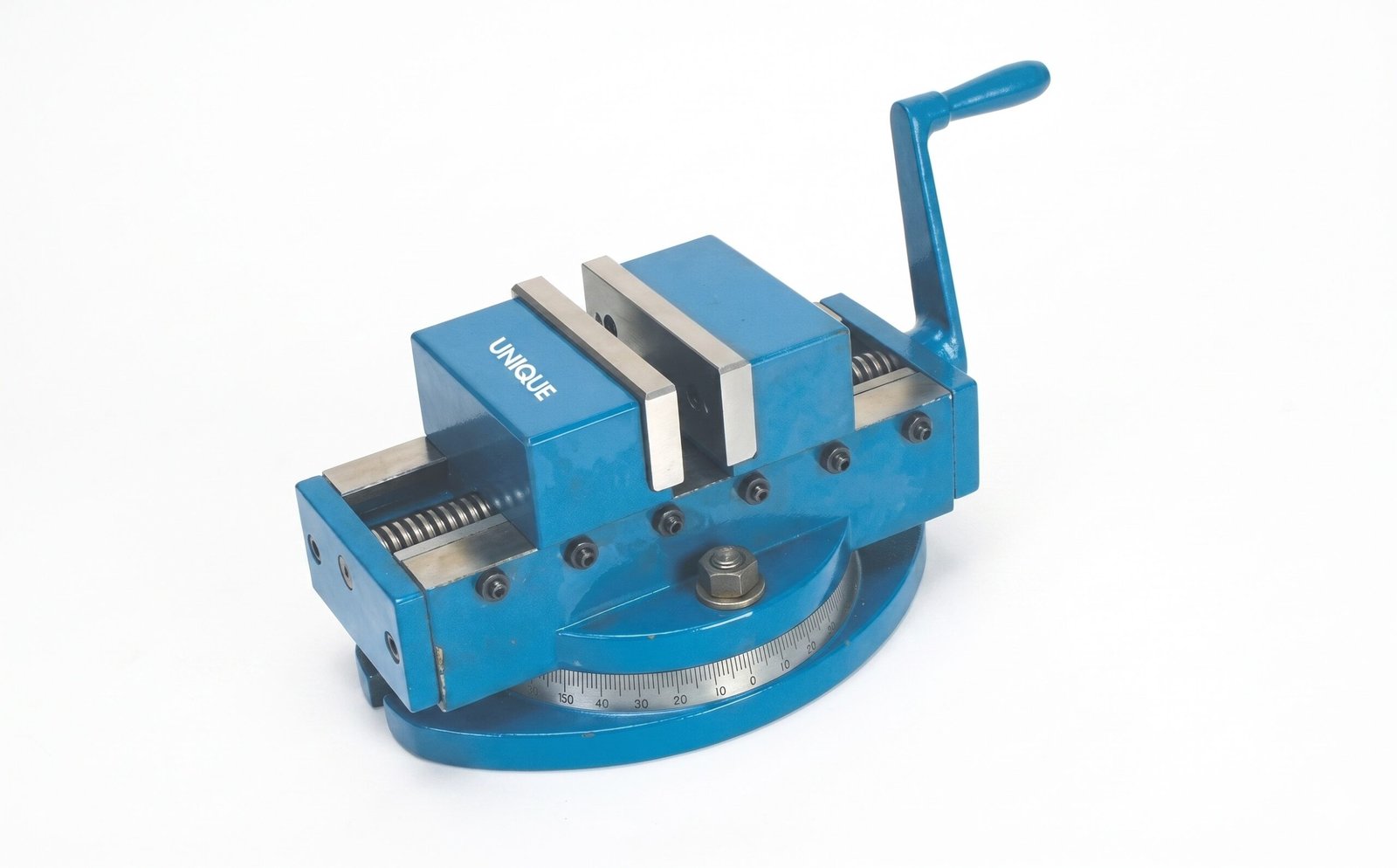

Unique Precision Self-Centering Vice with Swivel Base Code No: U 1314 S
Key Features
-
Precision Self-Centering: Both jaws move simultaneously to automatically align the workpiece to the center, making it ideal for centering-critical operations like slotting or drilling.
-
Integrated Swivel Base: Features a fully graduated base that rotates 360°, allowing for precise angular positioning on the machine table.
-
Heavy-Duty Construction: Built to maintain high accuracy and stability during rigorous industrial milling and machining tasks.
-
Optimized Grip: Designed to provide equal clamping force from both sides, ensuring the workpiece is held securely without shifting.
