Specifications…..

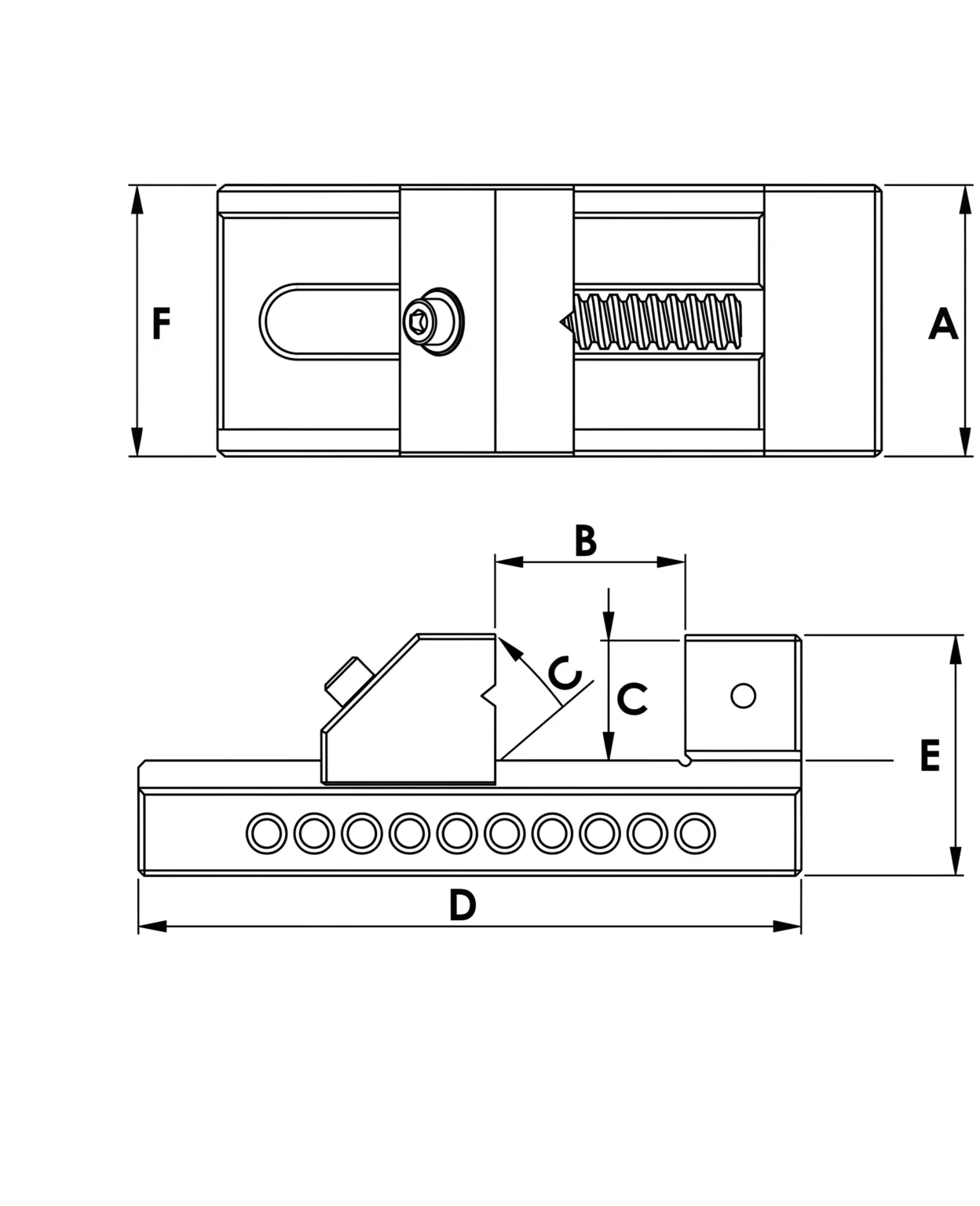

| Jaw Width (mm) | Opening (mm) | A | C | D | F | Weight (kg) |
| 50 | 75 | 20 | 51 | 155 | 50 | 1.7 |
| 75 | 100 | 35 | 64 | 180 | 76 | 3.7 |
| 100 | 135 | 45 | 84 | 232 | 95 | 7.6 |
| 150 | 190 | 48 | 96 | 330 | 150 | 19.4 |
Accuracy: Parallelism and squareness are guaranteed within ± 0.01 mm / 100 mm.

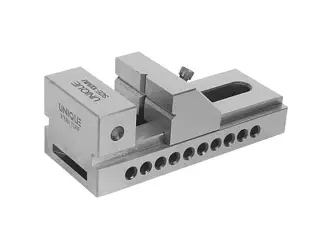

Unique Precision Screwless Vise Code No: U421
Key Features
-
Screwless Design: Provides a highly reliable clamping mechanism that avoids the mechanical backlash or wear associated with traditional screw-driven vises, ensuring smooth, precise operation.
-
Premium Tool Steel: Vise body and jaws are constructed from high-quality Tool Steel, which is hardened, tempered, and precision-ground to maintain superior dimensional stability.
-
Extreme Accuracy: Built to the highest standards, with all-side parallelism and squareness held within a strict ± 0.01 mm / 100 mm tolerance.
-
High-Performance Build: Engineered for longevity and consistent precision, making it an ideal choice for delicate grinding and high-accuracy inspection tasks.
