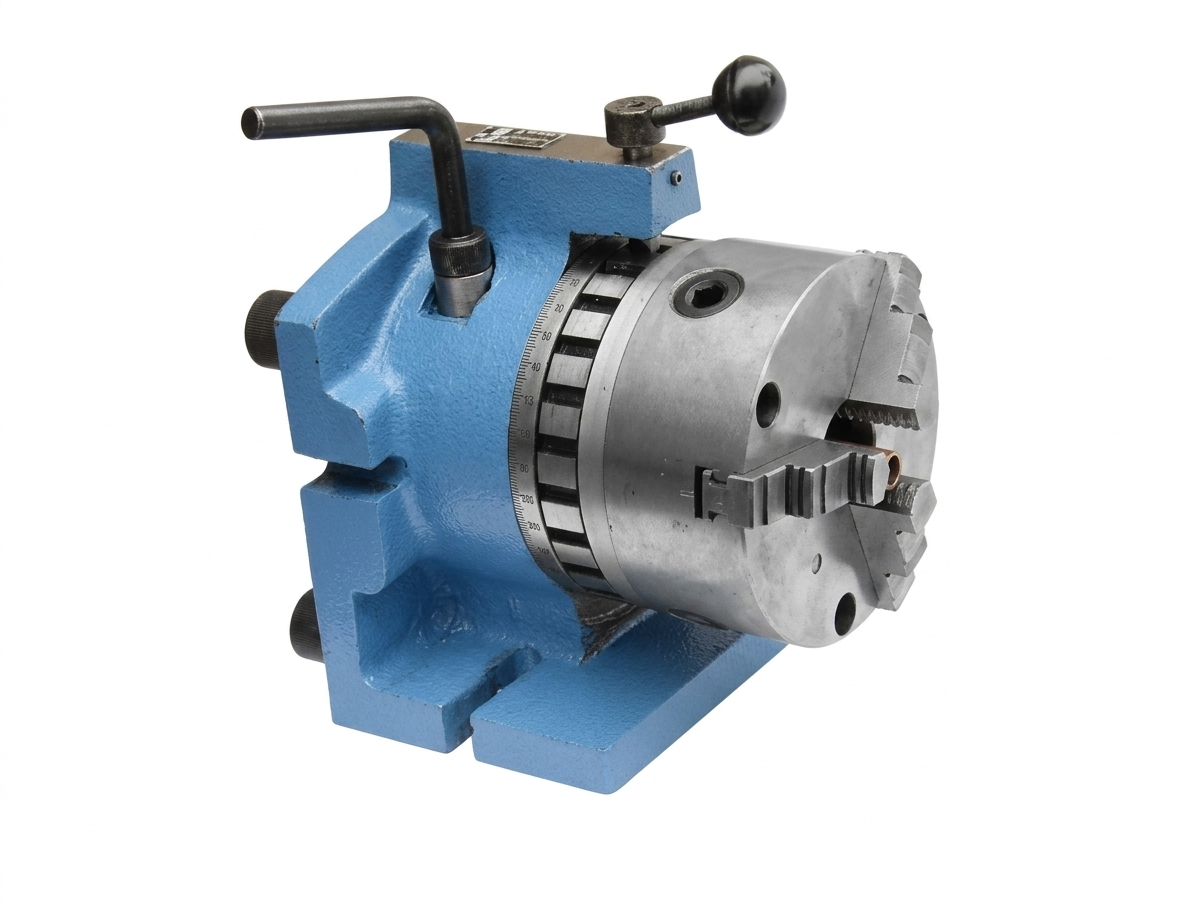

Dual-Functionality: Offers the combined capabilities of a Dividing Head (U352) and a Rotary Table (U354), providing significant cost and space savings.
Rapid Indexing: Equipped with 24 rapid indexing positions, allowing for quick, repeatable angle settings.
High-Precision Movement: Utilizes a high-quality combination of ball bearings and taper roller bearings for smooth, accurate rotation with minimal friction.
Fine Adjustment: Includes a graduated collar with a 1° least count for precise odd-degree indexing.
Optional Tail Stock: Available with a tail stock featuring a lead screw for fine-tuning the center of long workpieces.
Durable Build: All moving parts are hardened and precision-ground to ensure exceptional wear resistance and long-term accuracy, even under heavy usage
| Model | Length (mm) | Width (mm) | Height (mm) | Indexing Pos. | Weight (kg) | Center Ht. (mm) | Chuck |
| IMF H/V 080 | 200 | 110 | 185 | 24 | 24 | 85 | 80mm 3-jaw |
| IMF H/V 100 | 200 | 110 | 185 | 24 | 25 | 85 | 100mm 3-jaw |
| IMF H/V 125 | 200 | 110 | 185 | 24 | 30 | 85 | 125mm chuck |
| IMF H/V 160 | 225 | 140 | 240 | 24 | 45 | 120 | 160mm chuck |
| IMF H/V 200 | 225 | 140 | 240 | 24 | 50 | 140 | 200mm chuck |
