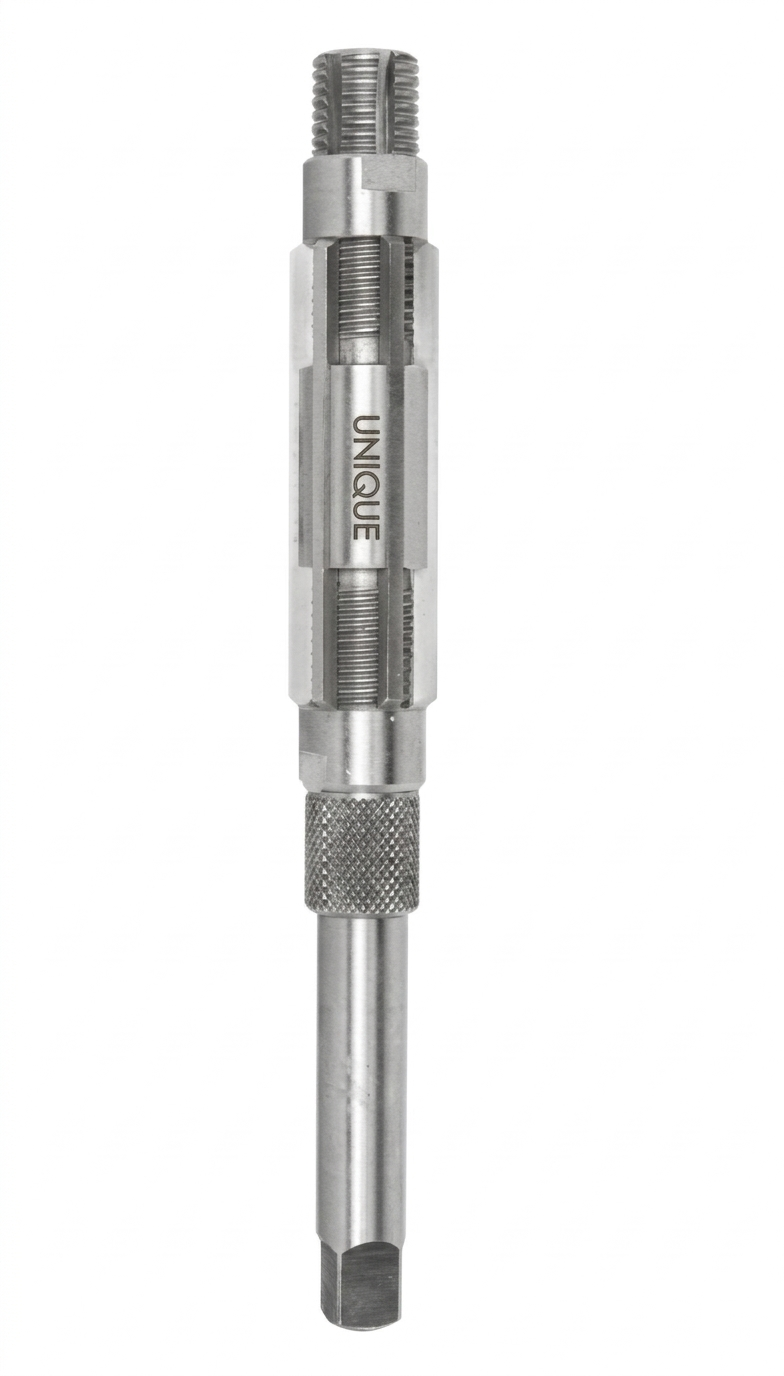

Unique HSS Adjustable Hand Reamer Code No: U372

Unique HSS Adjustable Hand Reamer Code No: U372

Key Features

Adjustable Diameter: The blades can be expanded or contracted within a specific range, enabling the tool to be used for multiple hole sizes and to compensate for tool wear.
HSS Construction: Manufactured from high-quality High-Speed Steel, ensuring superior edge retention, heat resistance, and long tool life.
Precision Finishing: Designed for manual operation to provide a smooth, high-quality surface finish with accurate sizing.
Comprehensive Range: Available in a wide variety of sizes, from 6.35mm up to 100mm, covering almost any application requirement.

Description
Reviews (0)

Specifications…..

Symbol	Blades	Range (mm)	Range (Inches)
HV	4	6.35 – 7.15	1/4 – 9/32
HW	4	7.15 – 7.95	9/32 – 5/16
HZ	4	7.95 – 8.7	5/16 – 11/32
HY	4	8.7 – 9.5	11/32 – 3/8
H1	6	9.5 – 10.25	3/8 – 13/32
H2	6	10.25 – 11	13/32 – 7/16
H3	6	11 – 12	7/16 – 15/32
H4	6	12 – 13.5	15/32 – 17/32
H5	6	13.5 – 15	17/32 – 19/32
H6	6	15 – 16.75	19/32 – 21/32
H7	6	16.75 – 18.25	21/32 – 23/32
H8	6	18.25 – 19.75	23/32 – 25/32
H9	6	19.75 – 21.5	25/32 – 15/16
H10	6	21.5 – 24	15/16 – 1.1/16
H11	6	24 – 27	1.1/16 – 1.3/16
H12	6	27 – 30	1.3/16 – 1.11/32
H13	6	30 – 34	1.11/32 – 1.1/2
H14	6	34 – 38	1.1/2 – 1.13/16
H15	6	38 – 46	1.13/16 – 2.7/32
H16	6	46 – 56	2.7/32 – 2.3/4
H17	6	56 – 70	2.3/4 – 3.11/32
H18	6	70 – 85	3.11/32 – 4
H19	6	85 – 100	–
