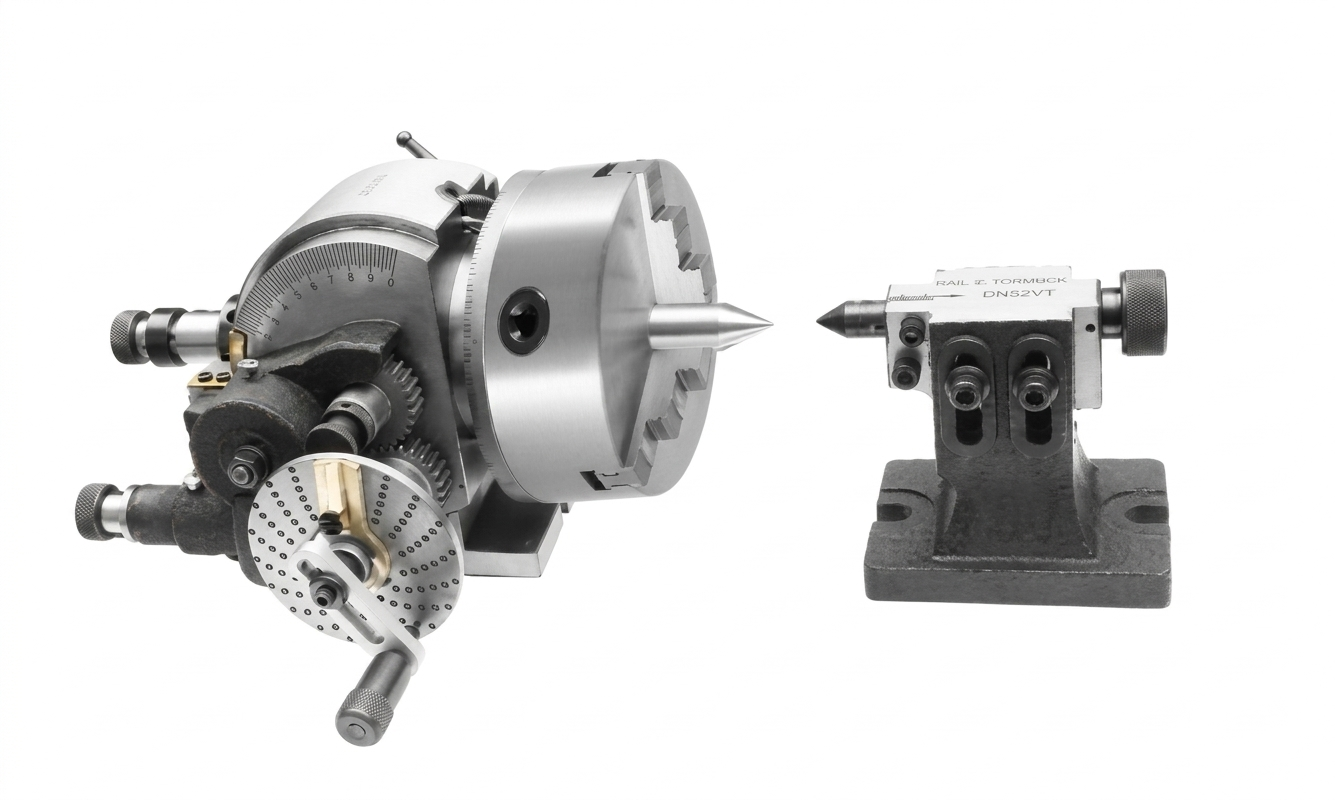

High-Precision Indexing: Capable of dividing at any angle required, supported by included indexing plates.
40:1 Gear Ratio: The precision worm and worm gear configuration provides a standard 40:1 ratio for controlled, accurate rotations.
Rigid Spindle Construction: Features a hardened and ground spindle supported by taper roller bearings, ensuring maximum stiffness and minimal runout.
Swivel Head Versatility: The head can be locked securely at any angle from 10° below the horizontal to 90° vertical, facilitating multi-axis machining.
Hardened Components: Both the worm and the spindle are hardened and ground for exceptional wear resistance and long-term durability.
| Specifications | 150 mm | 200 mm |
| A (Length) | 359 mm | 359 mm |
| B (Length) | 340 mm | 340 mm |
| H (Height) | 235 mm | 235 mm |
| a (Base Length) | 212 mm | 212 mm |
| b (Base Width) | 135 mm | 135 mm |
| g (Slot/Bolt Size) | 16 mm | 16 mm |
| h (Center Height) | 134 mm | 134 mm |
| Taper of Center | MT-4 | MT-4 |
| Spindle Through Hole | 25 mm | 25 mm |
