Unique Drill Sleeves
Drill sleeves (also known as Morse Taper adapters) are essential precision accessories used to adapt machine spindles or tools to different Morse Taper sizes. The U4045 series is designed for maximum concentricity and durability, ensuring that drilling operations remain precise even when using a variety of tooling sizes.
Unique 3-Way Universal Tilt & Swivel Angle Vice
A versatile 3-axis vice that tilts, leans, and rotates to any possible angle, ensuring a rock-solid grip for the most complex machining setups.
Unique 3-Way Universal Tilt & Swivel Angle Vice
- Phone:+1 (859) 254-6589
- Email:info@example.com

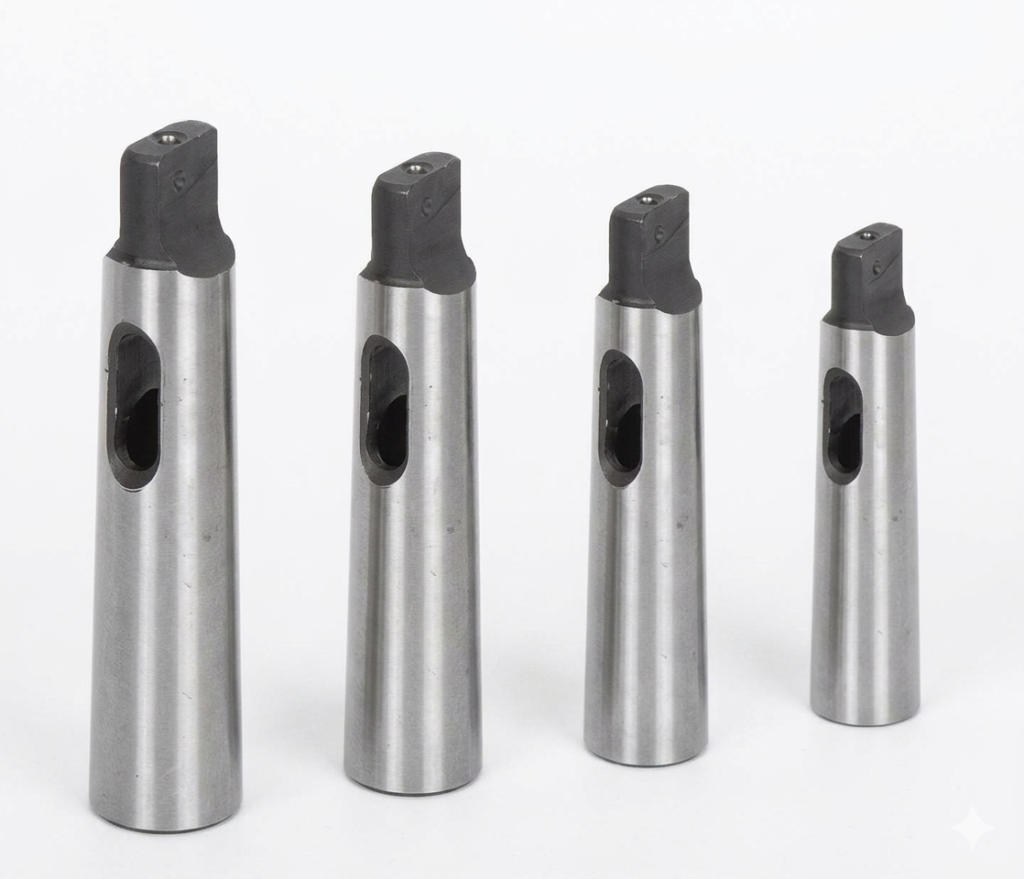

Unique Drill Sleeves
Code No: U4045
Quality Grades
A-Grade (Precision): Manufactured from case-hardened steel with a body and tang hardness of 54°–58° HRC. These are fully ground on both the inside and outside to ensure extreme accuracy and longevity.
Workshop Grade: Manufactured from durable carbon steel. These feature a precision-ground outside diameter and a reamed internal taper, with a hardened tang to resist damage during tool changes.
Specifications.....
| Inside Morse Taper | Outside Morse Taper | Overall Length (mm) |
| 1 | 2 | 92 |
| 1 | 3 | 112 |
| 1 | 4 | 124 |
| 2 | 3 | 124 |
| 2 | 4 | 171 |
| 2 | 5 | 156 |
| 3 | 3 | 99 |
| 3 | 4 | 124 |
| 3 | 5 | 156 |
| 4 | 5 | 156 |
| 4 | 6 | 218 |
| 5 | 6 | 218 |
