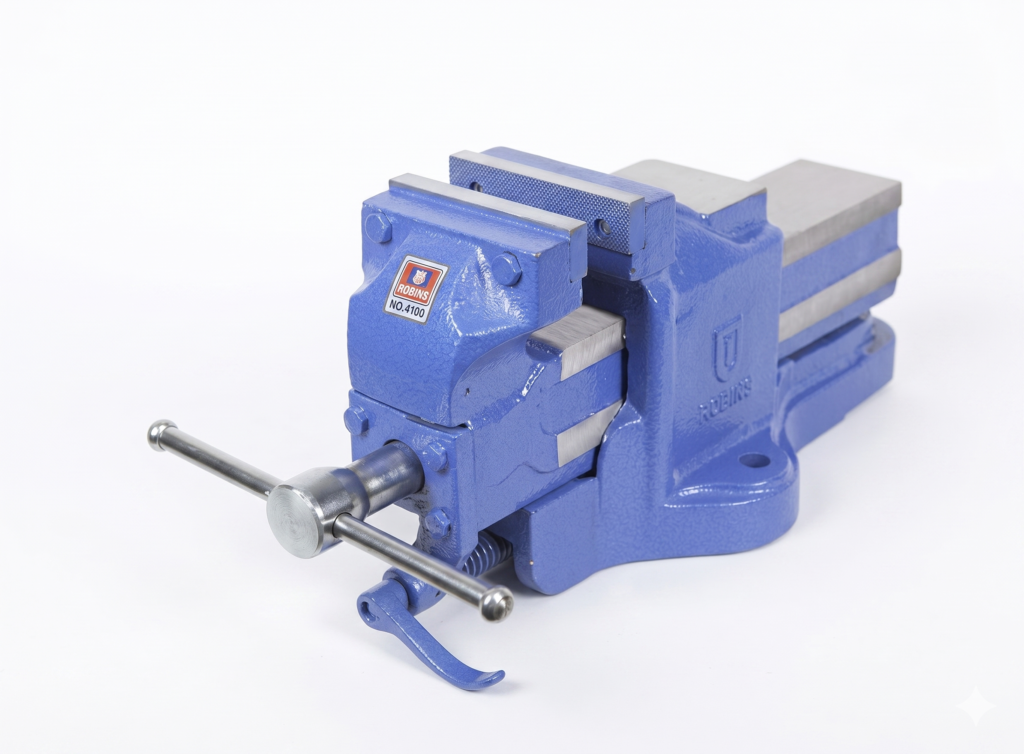

Bench Vice (Quick Action)
Code No: U327
Key Features
Quick-Grip Mechanism: Features a rapid-release trigger that allows for instant opening and closing of the jaws, significantly saving time during repetitive tasks.
Dual-Action Functionality: Offers the flexibility of high-speed adjustments via the trigger or traditional precision tightening using the conventional screw action.
Twin-Guide Slide: Engineered with a double-guide system to ensure perfectly balanced, smooth, and wobble-free jaw movement.
High-Tensile Steel Screw: Equipped with a fine-pitched steel screw and matching nut for maximum clamping force and long-term durability.
Efficiency-Focused Design: Specifically built for fast-paced industrial environments where both speed and rock-solid stability are essential.
Specifications.....
| Specifications | 4″ | 4.5″ | 5″ | 6″ |
| Width of Jaws (mm) | 100 | 115 | 125 | 150 |
| Opening of Jaws (mm) | 150 | 165 | 170 | 230 |
| Depth of Jaws (mm) | 64 | 65 | 85 | 90 |
| Overall Height (mm) | 190 | 195 | 215 | 220 |
| Overall Width (mm) | 170 | 180 | 190 | 230 |
| Overall Length (mm) | 435 | 445 | 520 | 550 |
| Approx. Weight (KGs) | 18 | 21 | 25.5 | 31.5 |
